Agriculture Bearings

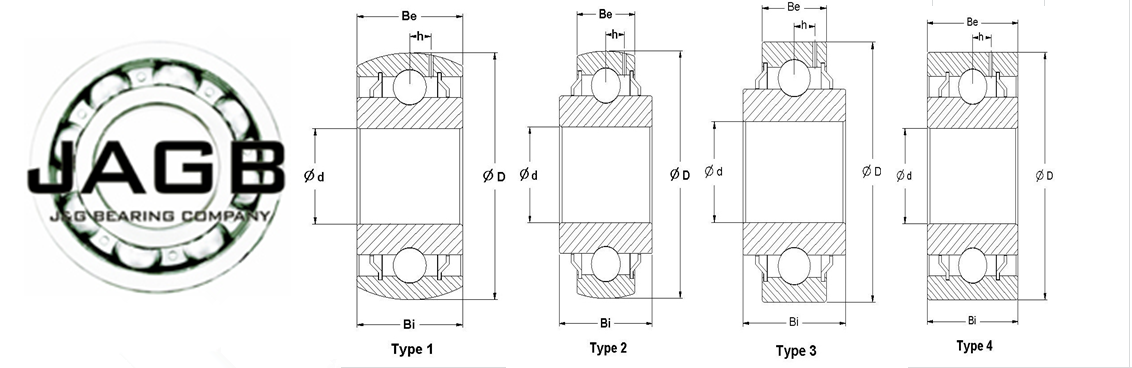

                       Round Bore Bearing, Tri-Ply Seals, Re-lubricatable

Bearing No. Type Dimensions(in) (mm) 　 Load Rating (KN) Weight(KG)
H di D Be Bi h Cr. Cor.
GW208PPB6 2 1.024 1.102 3.150 0.827 1.438 0.248 22.71 15.94 0.720
26.00 28.00 80.00 21.00 36.53 6.30
GW208PPB5 2 1.180 1.260 3.150 0.827 1.438 0.248 22.71 15.94 0.620
29.97 32.00 80.00 21.00 36.53 6.30
GW208PPB8 2 1.180 1.260 3.150 1.188 1.438 0.248 22.71 15.94 0.658
29.97 32.00 80.00 30.18 36.53 6.30
GW209PPB17 2 1.180 1.260 3.375 1.188 1.438 0.248 22.71 15.94 1.922
29.97 32.00 85.73 30.18 36.53 6.30
GW209PPB5 2 1.299 1.378 3.346 1.188 1.438 0.260 24.36 17.71 0.795
33.00 35.00 85.00 30.18 36.53 6.60
GW2090PPB8 2 1.299 1.378 3.346 0.866 1.438 0.260 24.36 17.71 0.749
33.00 35.00 85.00 22.00 36.53 6.60
GW210PPB4 1 1.180 1.260 3.543 1.188 1.188 0.260 27.50 20.20 0.840
29.97 32.00 90.00 30.18 30.18 6.60
GW211PPB4 1 1.180 1.260 3.543 1.188 1.188 0.260 27.50 20.20 0.890
29.97 32.000 90.00 30.18 30.18 6.60
GW211PPB3 1 1.531 1.653 3.938 1.313 1.313 0.302 27.50 25.10 1.036
38.89 42.00 100.00 33.34 33.34 7.67
GW211PP3 4 1.531 1.653 3.938 1.313 1.313 0.302 33.40 25.10 1.106
38.89 42.00 100.00 33.34 33.34 7.67
GW211PP17 3 1.531 1.653 3.938 1.313 1.750 0.302 33.40 25.10 1.252
38.89 42.00 100.00 33.34 44.45 7.67
GW214PPB4 1 2.055 2.161 4.921 1.563 1.563 0.354 46.79 37.59 2.157
52.20 54.90 125.00 39.69 39.69 9.00
GW216PP2 3 　 　 　 　 　 　 71.50 54.30 　
58.20 59.00 140.00 30.00 63.50 8.90
DC212TTR 3 　 　 　 　 　 　 47.70 33.10 　
45.50 48.00 110.00 38.25 50.80 7.60

  H = SQUARE DIMENSION;  di – RELIEF DIAMETER













    Square Bore Bearing, Tri-Ply Seals, Re-lubricatable

Bearing No. Type Dimensions(in) (mm) 　 Load Rating (KN) Weight(KG)
H di D Be Bi h Cr. Cor.
GW208PPB6 2 1.024 1.102 3.150 0.827 1.438 0.248 22.71 15.94 0.720
26.00 28.00 80.00 21.00 36.53 6.30
GW208PPB5 2 1.180 1.260 3.150 0.827 1.438 0.248 22.71 15.94 0.620
29.97 32.00 80.00 21.00 36.53 6.30
GW208PPB8 2 1.180 1.260 3.150 1.188 1.438 0.248 22.71 15.94 0.658
29.97 32.00 80.00 30.18 36.53 6.30
GW209PPB17 2 1.180 1.260 3.375 1.188 1.438 0.248 22.71 15.94 1.922
29.97 32.00 85.73 30.18 36.53 6.30
GW209PPB5 2 1.299 1.378 3.346 1.188 1.438 0.260 24.36 17.71 0.795
33.00 35.00 85.00 30.18 36.53 6.60
GW2090PPB8 2 1.299 1.378 3.346 0.866 1.438 0.260 24.36 17.71 0.749
33.00 35.00 85.00 22.00 36.53 6.60
GW210PPB4 1 1.180 1.260 3.543 1.188 1.188 0.260 27.50 20.20 0.840
29.97 32.00 90.00 30.18 30.18 6.60
GW211PPB4 1 1.180 1.260 3.543 1.188 1.188 0.260 27.50 20.20 0.890
29.97 32.000 90.00 30.18 30.18 6.60

GW211PPB3 1 1.531 1.653 3.938 1.313 1.313 0.302 27.50 25.10 1.036
38.89 42.00 100.00 33.34 33.34 7.67
GW211PP3 4 1.531 1.653 3.938 1.313 1.313 0.302 33.40 25.10 1.106
38.89 42.00 100.00 33.34 33.34 7.67
GW211PP17 3 1.531 1.653 3.938 1.313 1.750 0.302 33.40 25.10 1.252
38.89 42.00 100.00 33.34 44.45 7.67
GW214PPB4 1 2.055 2.161 4.921 1.563 1.563 0.354 46.79 37.59 2.157
52.20 54.90 125.00 39.69 39.69 9.00
GW216PP2 3 　 　 　 　 　 　 71.50 54.30 　
58.20 59.00 140.00 30.00 63.50 8.90
DC212TTR 3 　 　 　 　 　 　 47.70 33.10 　
45.50 48.00 110.00 38.25 50.80 7.60

  H = SQUARE DIMENSION;  di – RELIEF DIAMETER

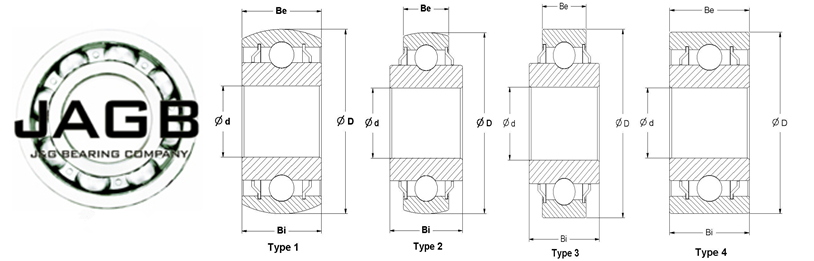

    ROUND BORE BEARING, TRI-PLY SEALS, NON-RELUBRICATABLE



Bearing No. Type Dimensions(in) (mm) Load Rating (KN) Weight(KG)
d  D Be Bi Cr. Cor.
W208PPB7 2 1.188 3.150 0.709 1.188 22.71 15.94 0.558
30.18 80.00 18.00 30.18
W208PPB2 2 1.501 3.150 0.7090 1.688 22.71 15.94 0.598
38.11 80.00 18.00 42.88
W208PPB10 2 1.501 3.150 0.827 1.688 22.71 15.94 0.817
38.11 80.00 21.00 42.88
W208PPB23 2 1.501 3.150 1.188 1.688 22.71 15.94 0.817
38.11 80.00 30.18 42.88
W209PPB4 1 1.535 3.346 1.188 1.188 24.36 17.71 0.659
39.00 85.00 30.18 30.18
W209PPB2 1 1.772 3.346 1.188 1.188 24.36 17.71 0.566
45.00 85.00 30.18 30.18
W210PP8 4 1.530 3.543 1.188 1.188 27.50 20.20 0.836
38.85 90.00 30.18 30.18
W210PPB5 1 1.785 3.543 1.188 1.188 27.50 20.20 0.749
45.34 90.00 30.18 30.18

W210PPB2 1 1.938 3.543 1.188 1.188 27.50 20.20 0.708
49.23 90.00 30.18 30.18
W210PP2 4 1.938 3.543 1.188 1.188 27.50 20.20 0.667
49.23 90.00 30.18 30.18
W211PPB2 1 2.188 3.937 1.313 1.313 33.40 25.10 1.000
55.58 100.00 33.35 33.35
W211PP2 4 2.188 3.937 1.313 1.313 33.40 25.10 1.010
55.58 100.00 33.35 33.35
W214PPB2 1 2.756 4.921 1.563 1.563 46.79 37.59 1.667
70.00 125.00 39.70 39.70
W214PP2 4 2.756 4.921 1.563 1.563 46.79 37.59 1.902
70.00 125.00 39.70 39.70
W214PPB9 1 2.756 4.921 1.102 1.750 46.79 37.59 1.902
70.00 125.00 28.00 44.45

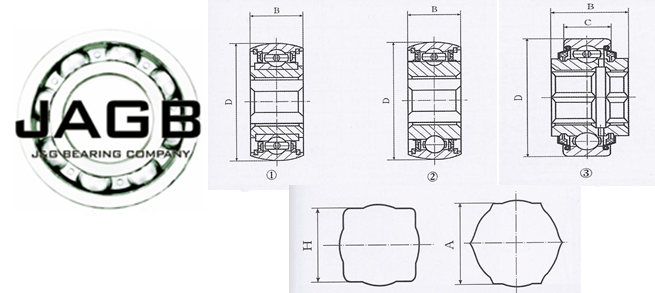

SQUARE BORE BEARING, TRI-PLY SEALS, NON-RELUBRICATABLE



Bearing No. Type Dimensions(in) (mm) Load Rating (KN) Weight(KG)
H di D Be Bi Cr. Cor.
W208PPB13 2 0.904 0.945 3.150 0.7090 1.438 22.71 15.94 0.690
22.97 24.00 80.00 18.00 36.53
W208PPB6 2 1.024 1.102 3.150 0.7090 1.438 22.71 15.94 0.652
26.00 28.00 80.00 18.00 36.53
W208PP6 3 1.024 1.102 3.150 0.709 1.438 22.71 15.94 0.662
26.00 28.00 80.00 18.00 36.53
W208PPB5 2 1.180 1.260 3.150 0.709 1.438 22.71 15.94 0.590
29.97 32.00 80.00 18.00 36.53
W208PP5 3 1.180 1.260 3.150 0.709 1.438 22.71 15.94 0.600
29.97 32.00 80.00 18.00 36.53
W208PPB8 2 1.180 1.260 3.150 1.188 1.438 22.71 15.94 0.735
29.97 32.00 80.00 30.18 36.53
W208PP8 3 1.180 1.260 3.150 1.188 1.438 22.71 15.94 0.709
29.97 32.00 80.00 30.18 36.53
W208PP20 3 1.180 1.260 3.150 0.709 1.438 22.71 15.94 0.681
29.97 32.00 80.00 18.00 36.53

W209PPB5 2 1.299 1.378 3.346 1.188 1.438 24.36 17.11 0.945
33.00 35.00 85.00 30.18 36.53
W210PPB4 1 1.180 1.260 3.543 1.188 1.188 27.50 20.20 0.846
29.97 32.00 90.00 30.18 30.18
W210PP4 4 1.180 1.260 3.543 1.188 1.188 27.50 20.20 1.049
29.97 32.00 90.00 30.18 30.18
W210PPB6 2 1.180 1.260 3.543 1.188 1.438 27.50 20.20 0.733
29.97 32.00 90.00 30.18 36.53
W211PPB3 1 1.531 1.654 3.937 1.313 1.313 33.40 25.10 1.208
38.89 42.00 100.00 33.34 33.34
W211PP3 4 1.531 1.654 3.937 1.313 1.313 33.40 25.10 1.271
38.89 42.00 100.00 33.34 33.34
W211PP5 3 1.531 1.654 4.000 1.438 1.750 33.40 25.10 1.302
38.89 42.00 101.60 36.53 44.45
20414 3 　 　 　 　 　 25.09 19.82 0.652
30.10 31.00 80.00 18.00 36.53

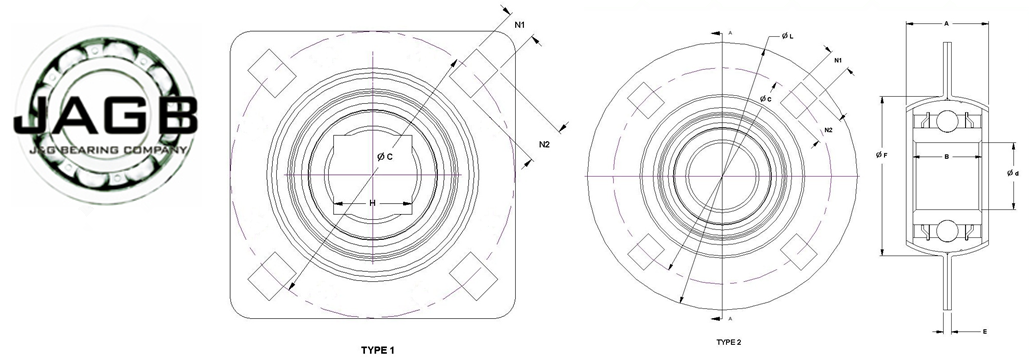

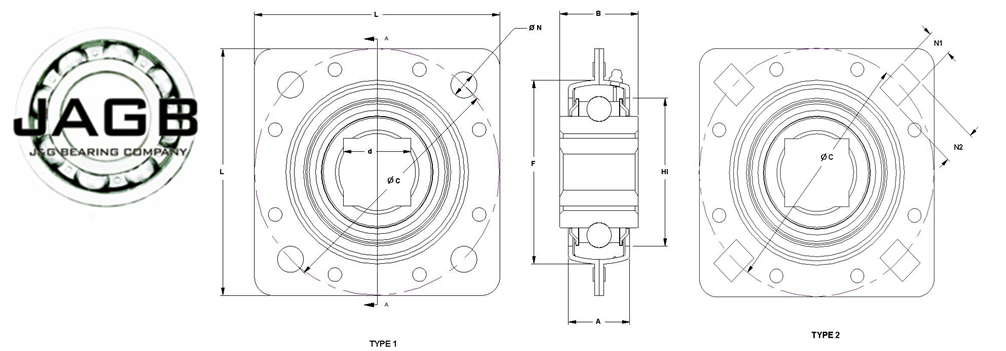

ST SERIES, FLANGED DISC UNIT, TRI-PLY SEALS, RELUBRICATABLE



Bearing No. Type Dimensions(in) (mm) 4 – Holes Weight(KG)
d  L B A E HI F C N N1 N2
ST491B 1–2 1.530 5.000 1.685 1.654 0.276 2.343 3.839 5.000 0.531 0.531 0.687 1.700
38.86 127.00 42.80 42.00 7.00 59.50 97.50 127.00 13.50 13.50 17.45
ST209-40R 1–2 1.609 5.000 1.685 1.654 0.276 2.343 3.839 5.000 0.531 0.531 0.687 3.380
40.88 127.00 42.80 42.00 7.00 59.50 97.50 127.00 13.50 13.50 17.45
ST491A 1–2 1.772 5.000 1.685 1.654 0.276 2.343 3.839 5.000 0.531 0.531 0.687 1.515
45.00 127.00 42.80 42.00 7.00 59.50 97.50 127.00 13.50 13.50 17.45
ST209-45R 1–2 1.7850 5.0000 1.6850 1.6535 0.2756 2.3425 3.8386 5.0000 0.532 0.532 0.6800 1.540
45.340 127.0 42.8 42.0 7.0 59.5 97.5 127.0 13.5 13.5 17.45
ST211-50R 2 1.984 5.000 2.000 1.827 0.354 2.854 4.449 5.500   0.531 0.687 2.606
50.40 127.00 50.80 46.40 9.00 72.50 113.00 139.70   13.50 17.45
ST211-55R 2 2.188 5.500 2.000 1.827 0.354 2.854 4.449 5.500   0.531 0.687 2.252
55.58 139.70 50.80 46.40 9.00 72.50 113.00 139.70   13.50 17.45

ST211-1 3/4 1–2 1.780 5.500 2.189 1.827 0.354 2.854 4.449 5.500 0.531 0.531 0.687 2.700
45.21 139.70 55.60 46.40 9.00 72.50 113.00 139.70 13.50 13.50 17.45
ST211-2 3/16 1–2 2.188 5.500 2.189 1.827 0.354 2.854 4.449 5.500 0.531 0.531 0.687 2.250
55.58 139.70 55.60 46.40 9.00 72.50 113.00 139.70 13.50 13.50 17.45
ST211-1 15/16 1–2 1.939 5.500 2.752 1.827 0.354 2.854 4.449 5.500 0.531 0.531 0.687 2.272
49.24 139.70 69.90 46.40 9.00 72.50 113.00 139.70 13.50 13.50 17.45
ST740 1 2.188 5.500 2.189 1.827 0.354 2.854 4.449 5.500 0.516 　 　 　
55.58 139.70 55.60 46.40 9.00 72.50 113.00 139.70 13.10 　 　
ST208-1R5BC 2 1.043 5.000 1.654 1.378 0.276 2.165 3.622 5.000   0.531 0.618 　
26.50 127.00 42.00 35.00 7.00 55.00 92.00 127.00 　 13.50 15.70
ST209-1 1/8 1–2 1.180 5.000 1.673 1.685 0.276 2.343 3.839 5.000 0.531 0.531 0.687 1.680
29.97 127.00 42.50 42.80 7.00 59.50 97.50 127.00 13.50 13.50 17.45
ST209-30S 1–2 1.234 5.000 1.673 1.685 0.276 2.343 3.839 5.000 0.531 0.531 0.687 1.680
31.35 127.00 42.50 42.80 7.00 59.50 97.50 127.00 13.50 13.50 17.45
ST209-1 1/4 1–2 1.299 5.000 1.673 1.685 0.276 2.343 3.839 5.000 0.531 0.531 0.687 1.674
33.00 127.00 42.50 42.80 7.00 59.50 97.50 127.00 13.50 13.50 17.45
ST209-40R 1–2 1.609 5.000 1.673 1.685 0.276 2.343 3.839 5.000 0.531 0.531 0.687 1.760
40.88 127.00 42.50 42.80 7.00 59.50 97.50 127.00 13.50 13.50 17.45
FD-211-RM 1–2 1.531 5.500 2.000 1.827 0.354 2.874 4.469 5.500 0.531 0.531 0.687 2.856
38.89 139.70 50.80 46.40 9.00 73.00 113.50 139.70 13.50 13.50 17.45
ST211-40S 2 1.609 5.500 2.000 1.827 0.354 2.874 4.469 5.500 0.531 0.531 0.687 2.610
40.88 139.70 50.80 46.40 9.00 73.00 113.50 139.70 13.50 13.50 17.45
DHU 40S-211 2 1.609 5.500 2.000 1.827 0.354 2.874 4.469 5.500   0.531 0.594 　
40.88 139.70 50.80 46.40 9.00 73.00 113.50 139.70 　 13.50 15.10
ST208-1N 2 1.024 4.764 1.503 1.378 0.276 2.165 3.622 4.686   0.531 0.531 1.348
26.00 121.00 38.18 35.00 7.00 55.00 92.00 119.02 　 13.50 13.50
ST208-1 1/8 2 1.180 4.764 1.503 1.378 0.276 2.165 3.622 4.686   0.531 0.531 1.348
29.97 121.00 38.18 35.00 7.00 55.00 92.00 119.02 　 13.50 13.50
ST208-1 1/8G 2 1.180 4.764 1.503 1.378 0.276 2.165 3.622 4.686   0.531 0.531 1.348
29.97 121.00 38.18 35.00 7.00 55.00 92.00 119.02 　 13.50 13.50
ST208-1 42LTB 2 1.024 4.764 1.654 1.378 0.276 2.165 3.622 4.686   0.531 0.531 1.400
26.00 121.00 42.01 35.00 7.00 55.00 92.00 119.02 　 13.50 13.50

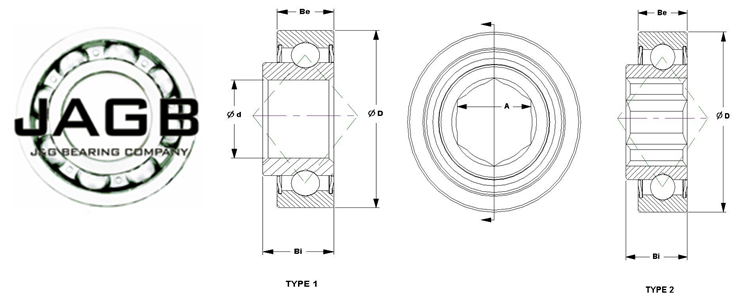

FLANGED DISC BEARING, TRI-PLY SEALS



Bearing No. Type 　 　 Dimensions(in) (mm) 　 　 　 　 Load Rating (KN) 　 Weight(KG)
d  H di D DI C B Cr. Cor.
W208PPB11 1 　 1.1800 0.9448 3.4020 0.3439 1.1880 1.4380 22.70 15.94 0.956
　 22.970 24.000 85.750 87.31 30.18 36.53
W208PPB12 1 　 1.1800 1.2598 3.4020 0.3439 1.1880 1.4380 22.71 15.94 0.953
　 22.970 32.000 85.750 87.31 30.18 36.53
209-1 3/4 2 1.7811 　 　 3.3465 　 1.1880 1.4380 24.36 17.71 0.702
45.240 　 　 85.000 　 30.18 36.53
W211PPB6 2 　 1.5311 1.6535 4.0772 4.1299 1.4380 1.7500 33.40 25.10 1.610
　 38.890 42.000 103.56 104.90 36.53 44.45
CDS211TR23 3 　 　 　 　 　 　 　 43.40 29.20 　
45.340 　 　 101.09 　 45.50 54.00











ST SERIES,  FLANGED DISC UNIT, TRI-PLY SEALS,

NON-RELUBRICATABLE



Bearing No. Type Dimensions(in) (mm) 4 – Holes Weight(KG)
H d L B A E F C N N1 N2
ST208 1 1.0350 　 4.7638 1.5031 1.1732 0.2756 3.6220 4.7638 　 0.5315 0.5315 0.981
26.30 　 121.0 38.18 29.8 7.0 92.0 121.0 　 13.5 13.5
ST209-1 3/4 2 　 1.7811 5.8660 1.5630 1.945 0.3150 3.7402 4.7480 　 0.5276 0.5276 1.941
　 45.240 149.0 39.70 49.4 8.0 95.0 120.6 　 13.4 13.4
ST211-2 3/16JD 2 　 2.1929 6.5750 1.3110 2.2204 0.3937 4.4094 5.4330 　 0.5276 0.5276 2.500
　 55.750 167.0 33.30 56.4 10.0 112.0 138.0 　 13.4 13.4
ST211-33 2 1.2992 　 6.6929 1.3110 1.5748 0.3150 3.6299 5.4330 0.5118 0.5118 0.5118 2.225
33.000 　 170.0 33.30 40.0 8.0 92.2 138.0 13.0 13.0 13.0

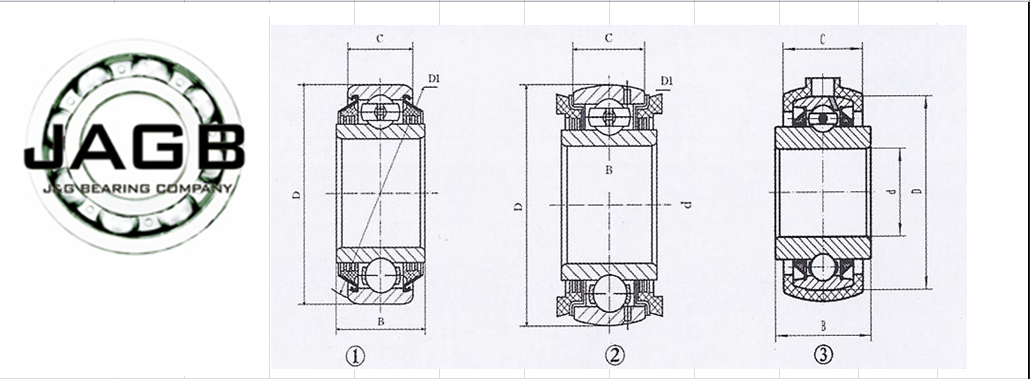

SPECIAL AG BEARING



Bearing No. Type 　 　 　 　 　 Load Rating (KN) 　 Weight(KG)
H A D C B Cr. Cor.
FMG33-100 1 1.299 　 3.937 1.378 1.181 49.79 41.94 0.9
33 x 33 ±0.15 　 100.00 35.00 30.00
FMG41-130 1 1.614 　 5.118 1.575 1.181 52.9 64.31 2.544
41 x 41 ±0.15 　 130.00 40.00 30.00
FMG33-130 2 1.299 　 5.118 1.575 1.181 52.9 64.31 2.744
33 x 33 ±0.15 　 130.00 40.00 30.00
CB205DDH 3 　 0.704 2.265 0.937 1.496 10.8 6.98 0.391
　 17.88 57.53 23.80 38.00
CB207DDH 3 　 1.085 3.073 1.094 1.694 25.7 15.49 0.757
　 27.56 78.05 27.80 43.03

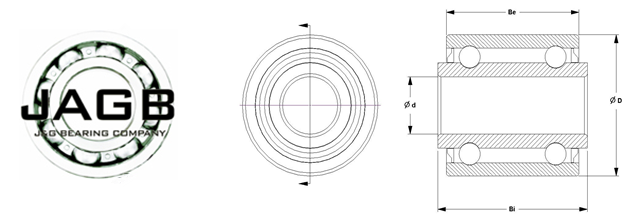

SPECIAL AG BEARING – 200 SERIES

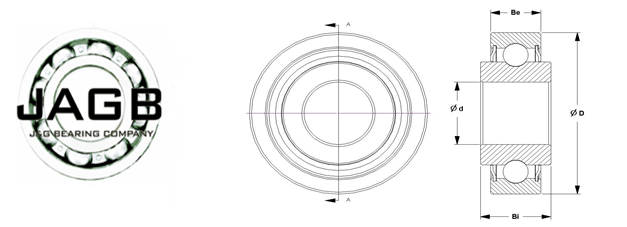

Bearing No. Dimensions(in) (mm) Load Rating (KN) Weight (kg)
d  D Be Bi Cr. Cor.
203KRR3 0.640 1.850 0.472 0.717 12.8 6.7 0.120
16.26 47.00 12.00 18.20
204KRR3 0.787 1.850 0.551 0.697 12.8 6.7 0.082
20.00 47.00 14.00 17.70
205KRR6 0.515 2.047 0.591 1.374 14.0 7.9 0.290
13.08 52.00 15.00 34.90
206KRR8 1.181 2.441 0.630 0.945 19.5 11.3 0.240
30.00 62.00 16.00 24.00
207KRR14 1.253 2.835 0.669 0.984 25.7 15.3 0.369
31.83 72.00 17.00 25.00
207KRR 1.378 2.835 0.669 0.984 25.7 15.3 0.378
35.00 72.00 17.00 25.00
208KRR2 1.575 3.150 0.827 1.063 29.5 18.1 0.580
40.00 80.00 21.00 27.00









 4 POINT CONTACT BEARINGS



Bearing No. Type Dimensions(in) (mm)
d  A D Be Bi
203DD-008V 　 　 　 1.575 0.474 0.865
　 　 40.00 12.04 21.97
AA205DD 1 0.635 　 2.090 0.718 0.764
16.13 　 53.09 18.24 19.40
205DD-003V 1 1.007 　 2.090 0.718 1.340
25.58 　 53.09 18.24 34.04
205DD-004V 2 　 0.755 2.090 0.718 1.340
　 19.18 53.09 18.24 34.04
205DD-005V 2 　 0.755 2.090 0.718 0.764
　 19.18 53.09 18.24 19.40
205DD-006V 2 　 0.885 2.090 0.718 0.764
　 22.48 53.09 18.24 19.40
205DD-007V 1 0.760 　 2.090 0.718 0.764
19.30 　 53.09 18.24 19.40
205DD-009V 2 　 0.755 2.090 0.718 1.713
　 19.18 53.09 18.24 43.51











SPECIAL AG BEARING – MATTHEWS STYLE



Bearing No. Type Dimensions(in) (mm) Load Rating (KN)
d  A D Be Bi Cr. Cor.
B1150 3   0.704 2.265 0.937 1.500 10.80 6.90
　 17.88 57.53 23.80 38.10
B1151 2 　 0.704 2.265 0.937 1.500 10.80 6.90
　 17.88 57.53 23.80 38.10
B1160 3 　 1.085 3.073 1.094 1.688 25.70 15.49
　 27.56 78.05 27.79 42.88
B1161 2 　 1.085 3.073 1.094 1.688 25.70 15.49
　 27.56 78.05 27.79 42.88
B1130 1 1.688 　 3.937 0.984 1.484 52.85 31.81
42.87 　 100.00 25.00 37.69
B1210 1 1.190 　 2.441 0.630 1.359 19.45 11.26
30.23 　 62.00 16.00 34.52
B1220 1 1.380 　 3.150 0.827 1.375 33.36 19.20
35.04 　 80.00 21.00 34.93
SBX07A25C3 3 　 1.131 2.835 0.669 0.984 19.75 15.30
  28.74 72.00 17.00 25.00













DOUBLE ROW AG BEARINGS



Bearing No. Dimensions(in) (mm)
d  D Be Bi
5203KYY2 0.640 1.575 1.535 1.732
16.26 40.00 39.00 44.00
6006RK 1.181 2.165 0.906 0.906
30.00 55.00 23.00 23.00











Copyright© 2012 J&G BEARING CO.,LTD. Add : 6804 Hobson Valley Dr.Unit #114 Woodridge, IL 60517 Tel : 630-352-1265 / 630-964-2908 Fax : 630-964-0955 Email : jason.tong@j-gbearings.com
