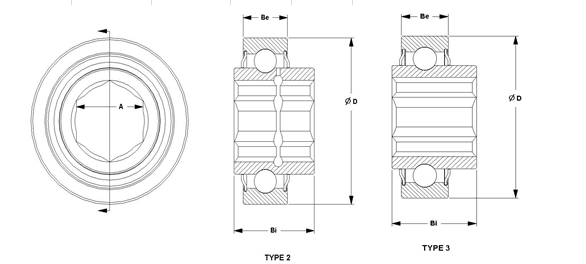

HDCB Series (B11XX)
SPECIAL AG BEARING – MATTHEWS STYLE
Bearing No.
Type
Dimensions(in) (mm)
Load Rating (KN)
d
A
D
Be
Bi
Cr.
Cor.
B1150
3
0.704
2.265
0.937
1.500
10.80
6.90
17.88
57.53
23.80
38.10
B1151
2
0.704
2.265
0.937
1.500
10.80
6.90
17.88
57.53
23.80
38.10
B1160
3
1.085
3.073
1.094
1.688
25.70
15.49
27.56
78.05
27.79
42.88
B1161
2
1.085
3.073
1.094
1.688
25.70
15.49
27.56
78.05
27.79
42.88
B1130
1
1.688
3.937
0.984
1.484
52.85
31.81
42.87
100.00
25.00
37.69
B1210
1
1.190
2.441
0.630
1.359
19.45
11.26
30.23
62.00
16.00
34.52
B1220
1
1.380
3.150
0.827
1.375
33.36
19.20
35.04
80.00
21.00
34.93
SBX07A25C3
3
1.131
2.835
0.669
0.984
19.75
15.30
28.74
72.00
17.00
25.00

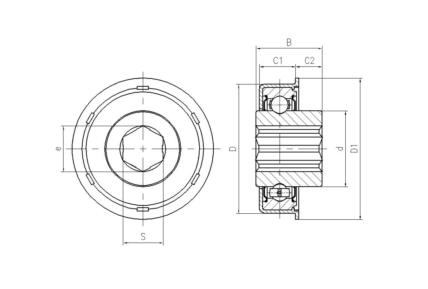

CBSF2.265 X 11/16
B
29.40 mm
C1
16.00 mm
C2
11.9 mm
D1
62.8 mm
D
57.28 mm
d
33.80 mm
S
17.73 mm
Shell
x 1
Sheild
x 2
Cage
x 1
Ball
x 9

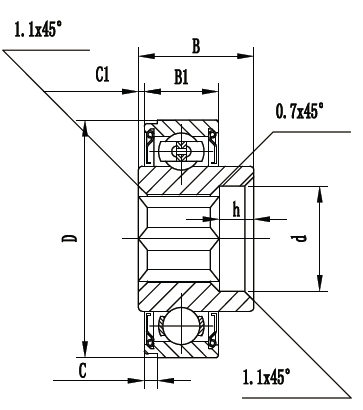

GF6002 ZZ
B:
13.82 mm
B1:
9 mm
D:
32 mm
d:
13 mm
Hex:
11.80 mm
Shield
x 2
Cage
x 2
Ball
x 9

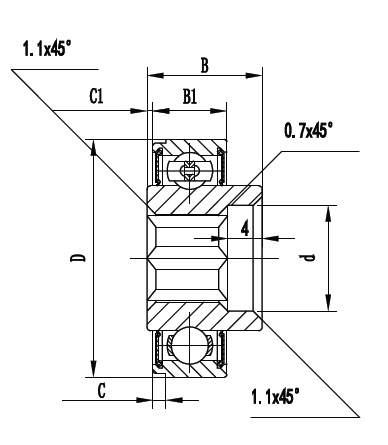

GF6002 2RS
B:
13.82 mm
B1:
9 mm
D:
32 mm
d:
13 mm
Hex:
11.80 mm
Seal
x 2
Cage
x 2
Ball
x 9

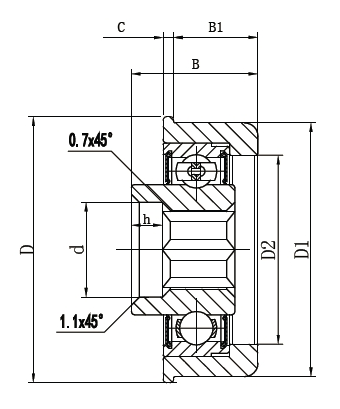

GF6002 2RSBH1.5 (B1420)
B1
12.21 mm
B
18.085 mm
C
1.575 mm
D
39.98 mm
d
13.50 mm
D1
38.10 mm
D2
28.00 mm
Hex
11.80 mm
Sheild
x 1
Seal Ring
x 2
Cage
x 2
Ball
x 9

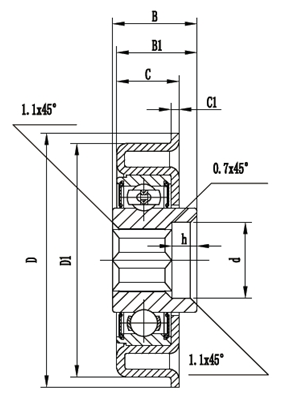

GF6002 2RSBH1.9
B
13.82 mm
B1
13.50 mm
C
10.70 mm
D
48.20 mm
D1
45.30 mm
C1
1.50 mm
d
13.50 mm
Hex
11.80 mm
Shell
x 1
Seal Ring
x 2
Cage
x 2
Ball
x 9

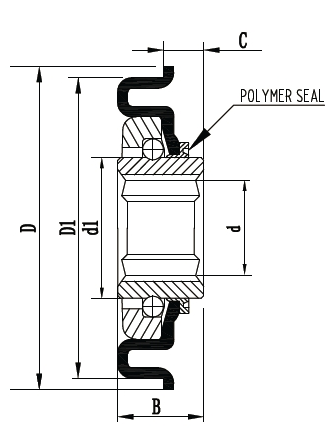

#1973
C
8.89 mm
D
61.976 mm
D1
57.582 mm
d
17.907 mm
B
16.51 mm
Polymer Seal
x 1
PCBH208-11-11 SS
(PCBH208-11-11)
D
61.80 mm
D1
57.70 mm
W
33.70 mm
W1
25.50 mm
Hex
18.00 mm
